Powder Agglomeration in Rotary Cup Spray Guns: Causes & Solutions
Introduction
Powder agglomeration is one of the most frustrating problems in powder coating operations. When powder clumps together inside a rotary cup spray gun, it causes uneven coating, surface defects, and wasted material. Understanding why agglomeration happens — and how to fix it — is essential for achieving consistent, high-quality results.
What Is Powder Agglomeration?
Powder agglomeration occurs when individual powder particles stick together, forming clumps instead of flowing freely. In rotary cup spray guns, this disrupts the atomization process, leading to:
- Uneven film thickness
- Orange peel surface texture
- Poor adhesion and durability
- Increased rework and material waste
Root Causes of Powder Agglomeration
1. Moisture Absorption
Powder coatings are highly sensitive to humidity. When powder absorbs moisture during storage or transportation, particles bond together and lose their free-flowing properties. Even brief exposure to humid air can trigger clumping.
Solution: Store powder in a cool, dry environment below 25°C and 65% relative humidity. Always seal bags immediately after use.
2. Electrostatic Charge Buildup
Excessive electrostatic charge causes powder particles to attract each other and clump before reaching the workpiece. This is particularly common in high-output rotary cup systems operating at incorrect voltage settings.
Solution: Calibrate voltage settings according to the powder manufacturer's specifications. The QXD-Q7 rotary cup system allows precise voltage adjustment to prevent over-charging.
3. Heat Exposure
Powder coatings begin to pre-cure when exposed to temperatures above 35°C. This causes partial melting and bonding between particles, creating hard clumps that cannot be broken up during spraying.
Solution: Never store powder near ovens or in direct sunlight. Monitor ambient temperature in your spray booth.
4. Contamination
Oil, water, or fine metal particles from the spray environment can act as binding agents, causing powder to agglomerate around the contaminants.
Solution: Regularly clean and inspect your rotary cup spray gun. Use filtered, dry compressed air throughout your system.
5. Expired or Poor-Quality Powder
Powder coatings have a shelf life of 12–24 months. Expired powder loses its flow properties and agglomerates easily, regardless of storage conditions.
Solution: Always check manufacture dates and use powder on a first-in, first-out basis.
How the QXD-Q7 Reduces Agglomeration Risk
The QXD-Q7 electrostatic powder coating machine features an advanced rotary cup atomization system designed to minimize agglomeration:
- Precise voltage control prevents over-charging and particle attraction
- High-speed rotary atomization breaks up minor clumps before they reach the workpiece
- Optimized airflow design keeps powder moving freely through the gun
- Easy-clean cup design prevents residue buildup between batches

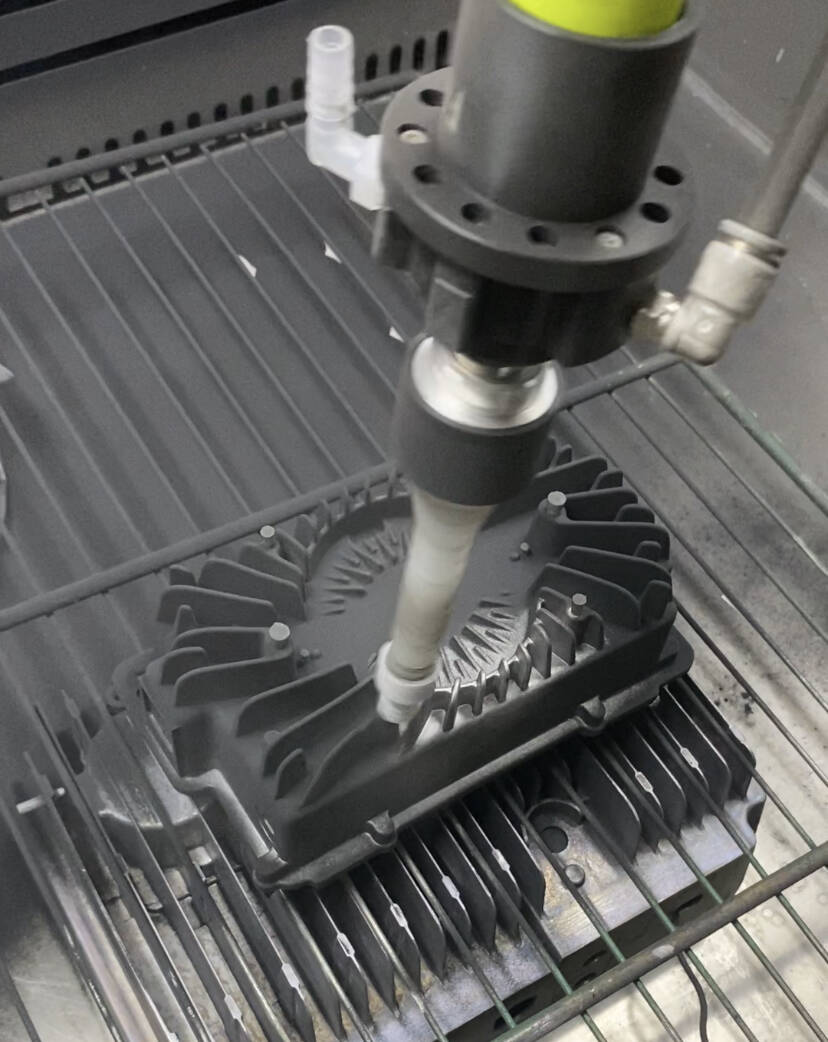

These features make the QXD-Q7 particularly effective for complex workpieces and high-volume production environments.
Prevention Checklist
Follow this checklist to keep agglomeration under control:
- ✅ Store powder below 25°C and 65% humidity
- ✅ Seal powder bags immediately after use
- ✅ Clean rotary cup gun after every shift
- ✅ Check and calibrate voltage settings regularly
- ✅ Use powder before expiry date
- ✅ Filter compressed air supply
- ✅ Keep spray environment free from oil and water contamination
Conclusion
Powder agglomeration is preventable with the right equipment and proper handling procedures. By addressing moisture, heat, electrostatic charge, and contamination, you can maintain consistent powder flow and achieve professional coating results every time. The QXD-Q7 rotary cup spray gun is engineered to support clean, efficient powder delivery — even in demanding industrial environments.
Contact QXD Coating to learn more about our powder coating equipment solutions.
